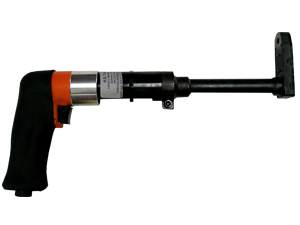

Hi-Shear Inst. & Removal l Pistol Grip Driver l Hi-Shear Super HLA1084



2 Inch Offset Driver Assembly
with Interference Fit Flush Socket

Ordering Information
• Match pin and collar hexes with Super-Key Hex and Socket Hex.
• See tables 1 & 2 for corresponding complete driver assembly part number.
Corresponding complete driver assembly part number.
Part Number Example
HLA1084-312
Part Number Example
HLA1084-H-312
• Piece Break Down
Hi shear Super HLA1084

Technical Data
Operating Pressure
90 PSIA
Horsepower Rating
0.70
Max Torque Rating (Motor)
300 in. lb. @ 90 PSIA
Air Consumption
22 SCFM
Socket Speed
250 RPM
Weight
3.8 lb.
-
Table 1
Table 2
Socket Size
A
C to C
B
Overall
C
Edge Distance
D
Width
“M” Socket Hex
(Matches Collar Driving Hex)
Complete Tool Assy. Part No.
Offset Adaptor Assy. Part No. (ref.)
Offset Adaptor Assy. Part No. (ref.)
Collar Driving Hex
(Matches Socket Hex)
Complete Tool Assy. Part No.
Offset Adaptor Assy. Part No. (ref.)
Up to 3/8”
2.210
3.182
0.431
0.500
1/4”
HLA1084-250
HLG125-250
HLG157-250
1/4”
HLA1084H-250
HLG125H-250
7/16” and up
2.250
3.283
0.500
0.500
5/16”
HLA1084-312
HLG125-312
HLG157-312
5/16”
HLA1084H-312
HLG125H-312
-
-
-
-
-
11/32”
HLA1084-343
HLG125-343
HLG157-343
11/32”
HLA1084H-343
HLG125H-343
-
-
-
-
-
7/16”
HLA1084-437
HLG125-437
HLG157-437
7/16”
HLA1084H-437
HLG125H-437
